Montacargas Diesel 4.5T CPCD4578
| General | 1 | Manufacture | EP | ||||||||
| 2 | Model | CPCD45T8 | CPCD50T8-X | CPCD45T8 | CPCD50T8-X | CPCD45T8 | CPCD50T8-X | ||||
| 3 | Power type | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel | ||||
| 4 | Rated capacity | Kg | 4500 | 5000 | 4500 | 5000 | 4500 | 5000 | |||
| 5 | Load center | mm | 500 | 500 | 500 | 500 | 500 | 500 | |||
| Characteristics & Dimensions | 6 | Lift height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | ||
| 7 | Free lift height | mm | 150 | 150 | 150 | 150 | 150 | 150 | |||
| 8 | Fork size | L×W×T | mm | 1070×150×55 | 1070×150×55 | 1070×150×55 | 1070×150×55 | 1070×150×55 | 1070×150×55 | ||
| 9 | Mast tilt range | F/R | deg | 6/10 | 6/10 | 6/10 | 6/10 | 6/10 | 6/10 | ||
| 10 | Fork overhang(wheel center to fork face) | mm | 565 | 565 | 565 | 565 | 565 | 565 | |||
| 11 | Rear overhang | mm | 540 | 565 | 540 | 565 | 540 | 565 | |||
| 12 | Overall dimensions | Length to face of fork | mm | 3070 | 3095 | 3070 | 3095 | 3070 | 3095 | ||
| 13 | Overall width | mm | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 | |||
| 14 | Mast lowered height | mm | 2265 | 2265 | 2265 | 2265 | 2265 | 2265 | |||
| 15 | Mast extended height | mm | 4250 | 4250 | 4250 | 4250 | 4250 | 4250 | |||
| 16 | Overhead guard height | mm | 2250 | 2250 | 2250 | 2250 | 2250 | 2250 | |||
| 17 | Turning radius(outsude) | mm | 2830 | 2860 | 2830 | 2860 | 2830 | 2860 | |||
| 18 | Min.right angle stacking aisle wiath (Add load length and clearance ) | mm | 3595 | 3625 | 3595 | 3625 | 3595 | 3625 | |||
| Performance | 19 | Speed | Travel (No/Full load) | Km/h | 22/20 | 22/20 | 22/20 | 22/20 | 22/20 | 22/20 | |
| 20 | Lifting (No/Full load) | mm/sec | 480/450 | 480/430 | 480/450 | 480/430 | 480/450 | 480/430 | |||
| 22 | Max.Drawbar Pull (Full load) | N | 21000 | 21000 | 21000 | 21000 | 21000 | 21000 | |||
| 23 | Max.Gradeability (Full load) | % | 20 | 20 | 20 | 20 | 20 | 20 | |||
| Chassis | 24 | Tyres | Front | mm | 300-15-14PR | 300-15-14PR | 300-15-14PR | 300-15-14PR | 300-15-14PR | 300-15-14PR | |
| 25 | Rear | mm | 700-12-12PR | 700-12-12PR | 700-12-12PR | 700-12-12PR | 700-12-12PR | 700-12-12PR | |||
| 26 | Tread | Font | mm | 1180 | 1180 | 1180 | 1180 | 1180 | 1180 | ||
| 27 | Rear | mm | 1190 | 1190 | 1190 | 1190 | 1190 | 1190 | |||
| 28 | Wheelbase | mm | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | |||
| 29 | Ground clearance | Mast | 160/140 | 160/140 | 160/140 | 160/140 | 160/140 | 160/140 | |||
| 30 | Frame | 195/180 | 195/180 | 195/180 | 195/180 | 195/180 | 195/180 | ||||
| Weight | 31 | Self weight | Kg | 6770 | 7050 | 6770 | 7050 | 6770 | 7050 | ||
| 32 | Weight Distribution | Full load | Front | 9805 | 10484 | 9805 | 10484 | 9805 | 10484 | ||
| 33 | Rear | 1465 | 1566 | 1465 | 1566 | 1465 | 1566 | ||||
| 34 | No load | Front | 3046 | 3172 | 3046 | 3172 | 3046 | 3172 | |||
| 35 | Rear | 3724 | 3878 | 3724 | 3878 | 3724 | 3878 | ||||
| Power & transmission | 36 | Battery | Voltage/Capacity | V/AH | 24/60 | 24/60 | 12/80 | 12/80 | 24/60 | 24/60 | |
| 37 | Engine | Modal | S6S | QSF2.8 | 4D35ZG31 | ||||||
| 38 | Manufacture | MITSUBISHI | CUMMINS | XIN CHAI | |||||||
| 39 | Rated output/r.p.m | kw | 52/2300 | 55/2200 | 60/2200 | ||||||
| 40 | Rated torque/r.p.m | N.m | 248/1700 | 300/1600 | 300/1600-1800 | ||||||
| 41 | No.of cylinder | 6 | 4 | 4 | |||||||
| 42 | Bore×Stroke | mm | 94*120 | 94*100 | 98*115 | ||||||
| 43 | Displacement | cc | 4996 | 2775 | 3460 | ||||||
| 44 | Fuel tank capacity | L | 90 | ||||||||
| 45 | Transmissions | Manufacture | OEM | ||||||||
| 46 | Type | Powershift | |||||||||
| 47 | Stage | FWD/RVS | 2/1 | ||||||||
| 48 | Operating pressure | Mpa | 17.5 | ||||||||

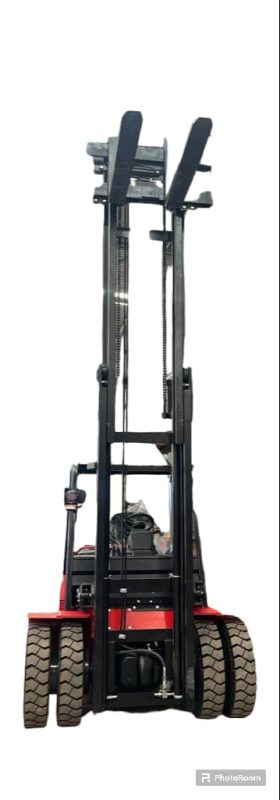

Montacargas Diesel 4.5T
Elevación a 4.5 M
Combustible Diesel
Mástil Doble
Ruedas Rudo maticas
Rodado Doble
